Aerobask Robin DR401¶
Deck Functions¶

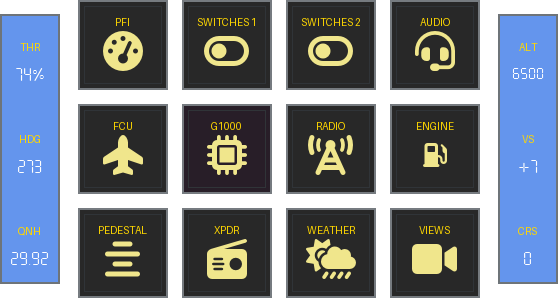

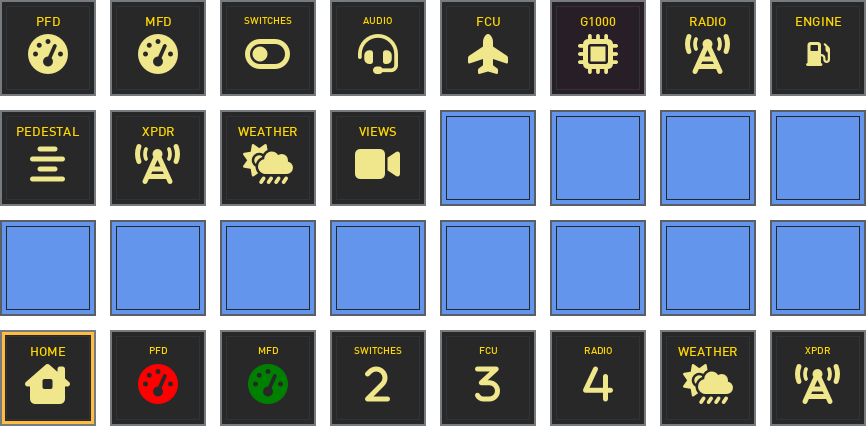

Home¶

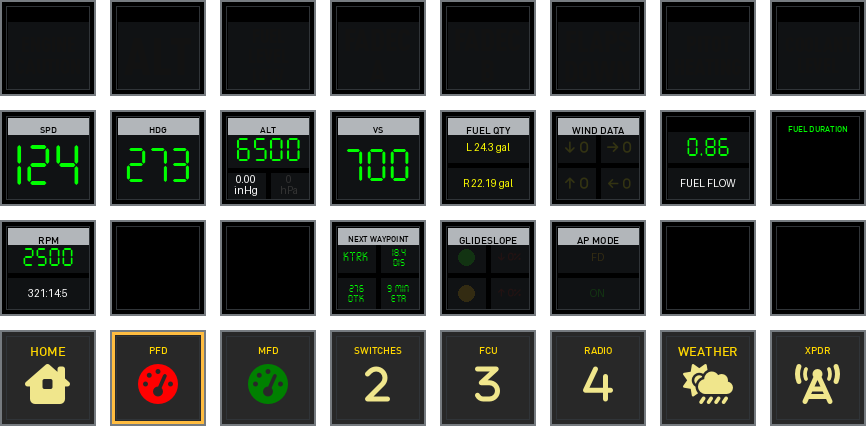

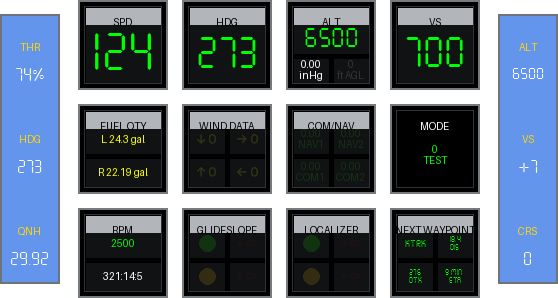

PFI¶
Primary flight instruments. Wind data represented as found on G1000. Next waypoint info includes the next waypoint id. Uses FCU encoders (left and right knobs/displays).

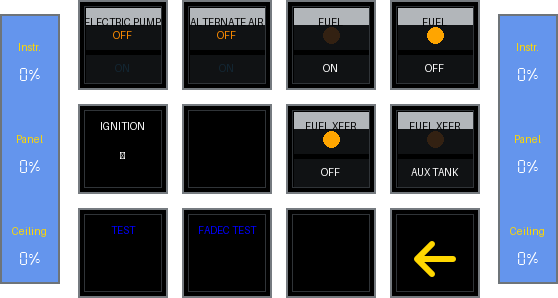

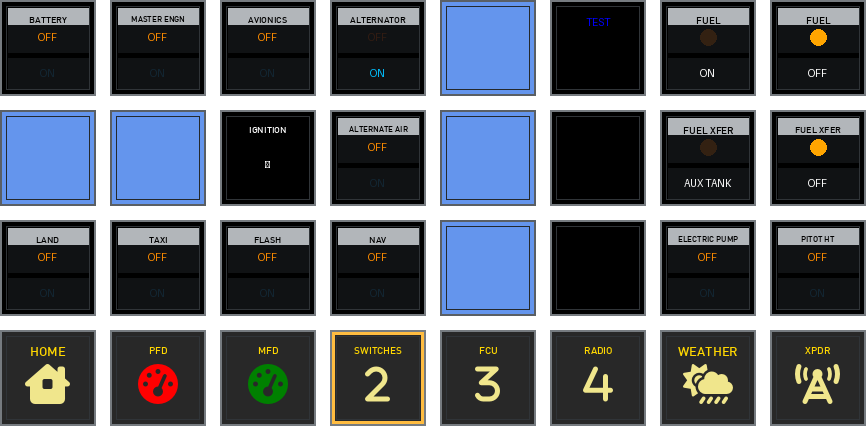

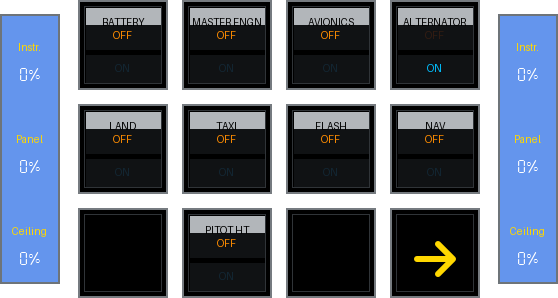

Switches¶
Provides two pages mainly for switches. Uses light encoders (for adjusting brightness). Left encoders are for fine adjustments (1% steps). Right encoders are for coarse adjustments (10% steps).
Start up procedure example:
- BATTERY ON
- MASTER ENGN ON
- AVIONICS ON
- ALTERNATOR ON
- FLAPS 25
- FUEL ON
- IGNITION LONG PRESS

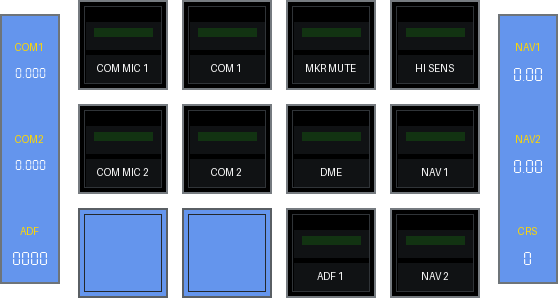

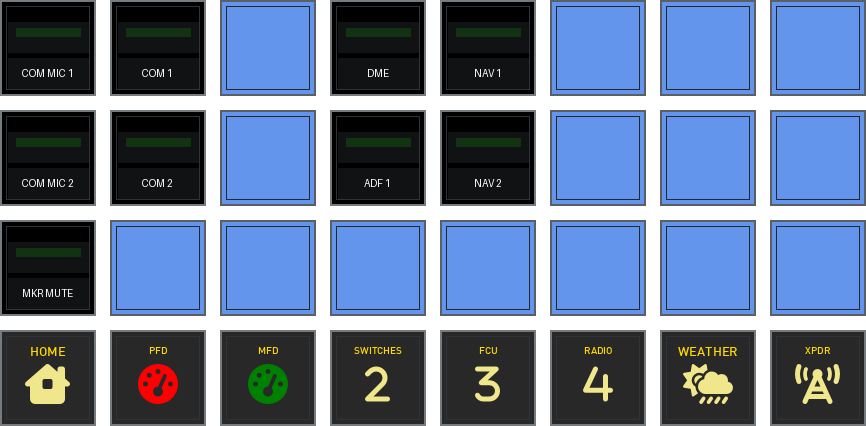

Audio Panel¶
Audio panel (Garmin GMA-1347)

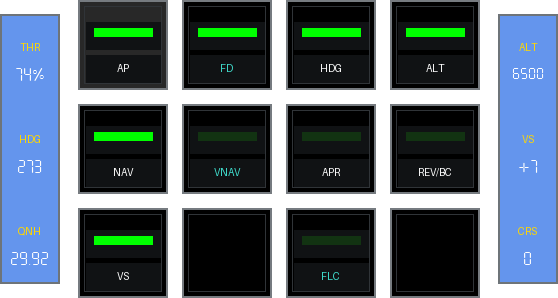

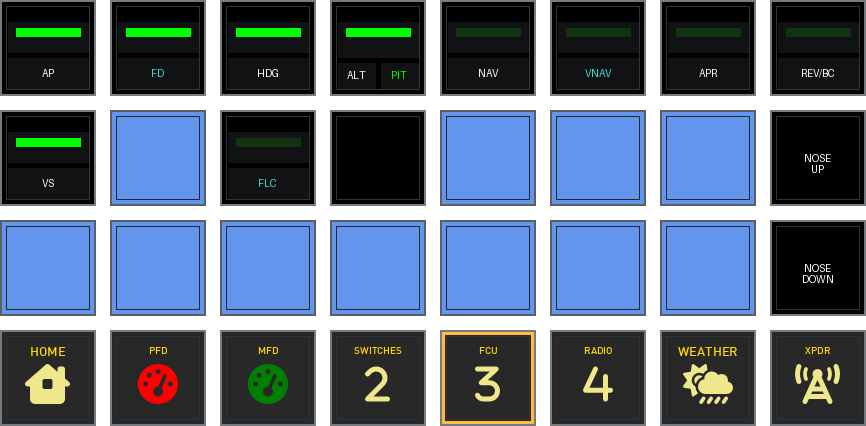

FCU¶

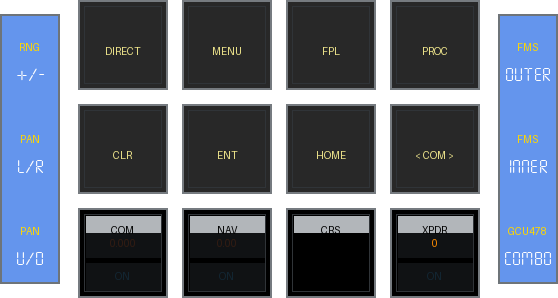

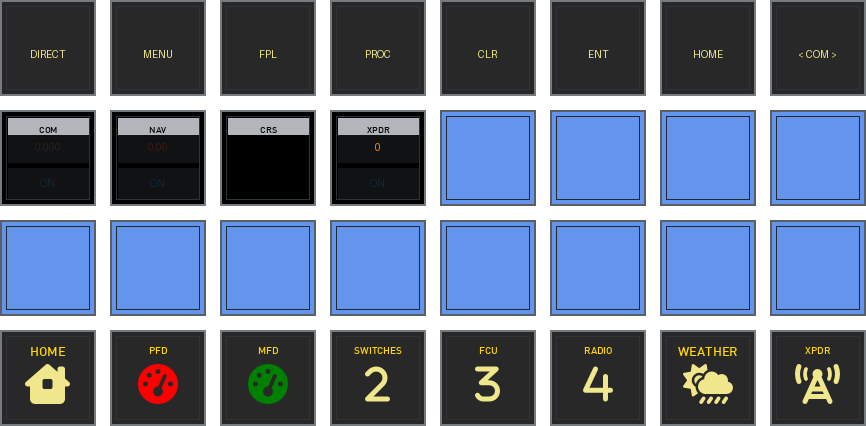

G1000¶

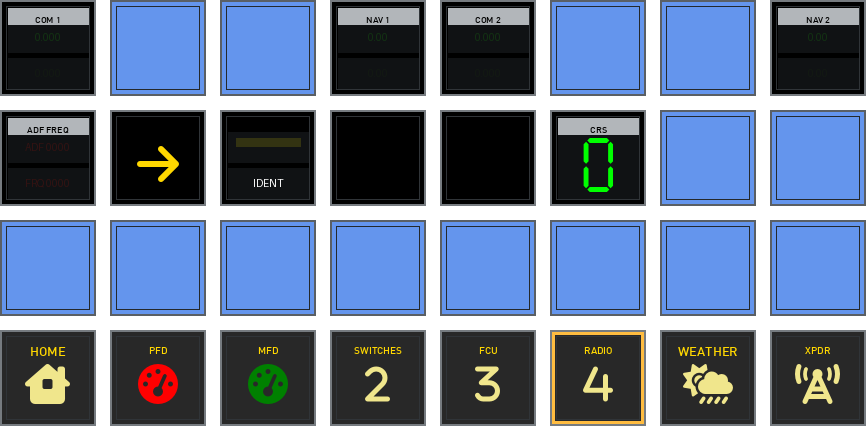

Radio¶

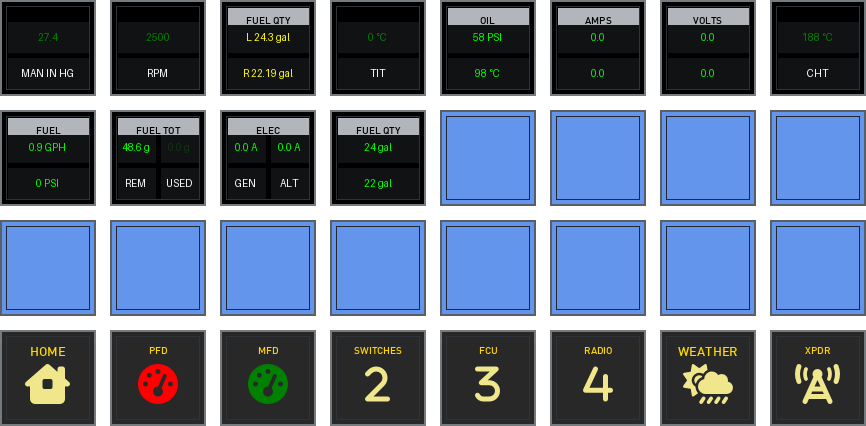

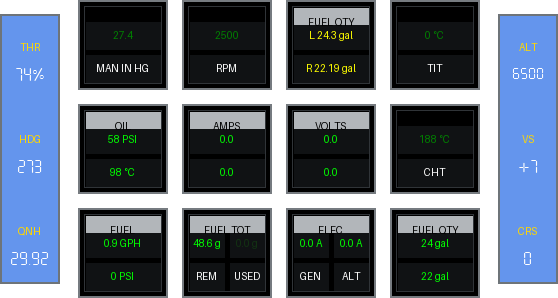

Engine¶
Warning
Engine to be corrected for engine type.m1
Pedestal¶

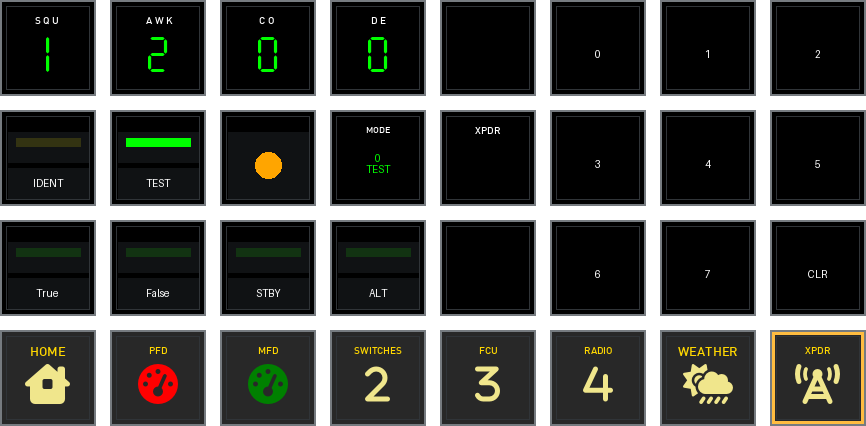

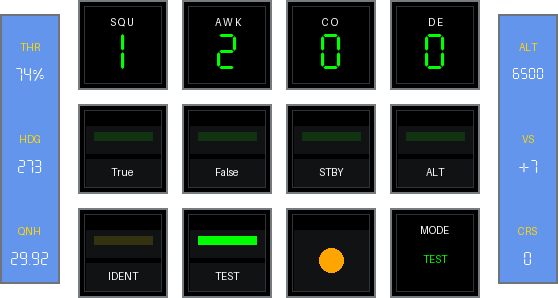

Transponder¶

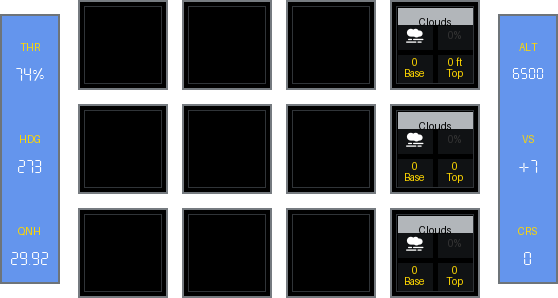

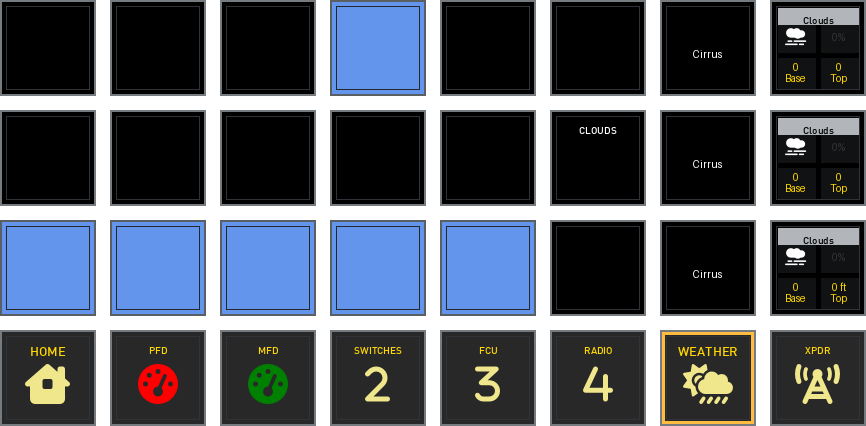

Weather¶

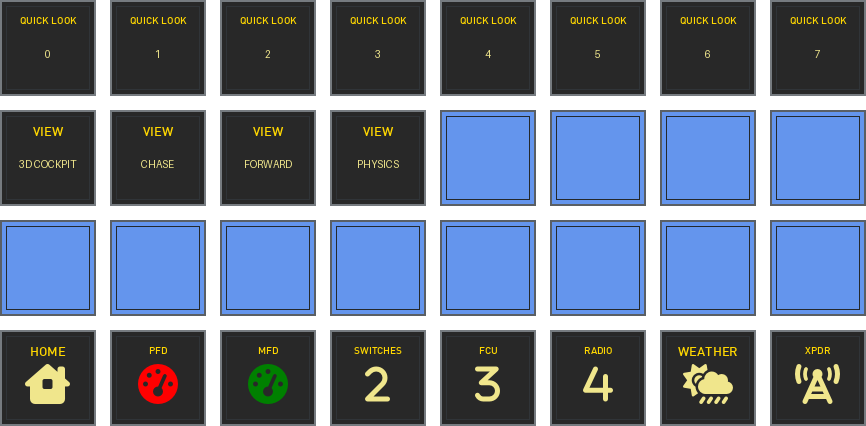

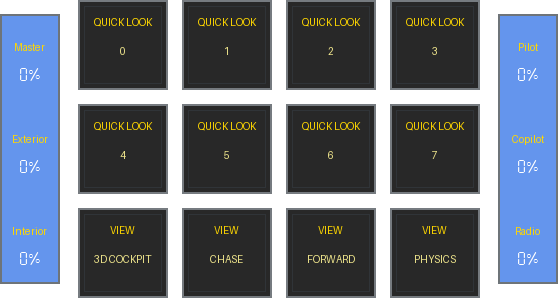

Views¶
-

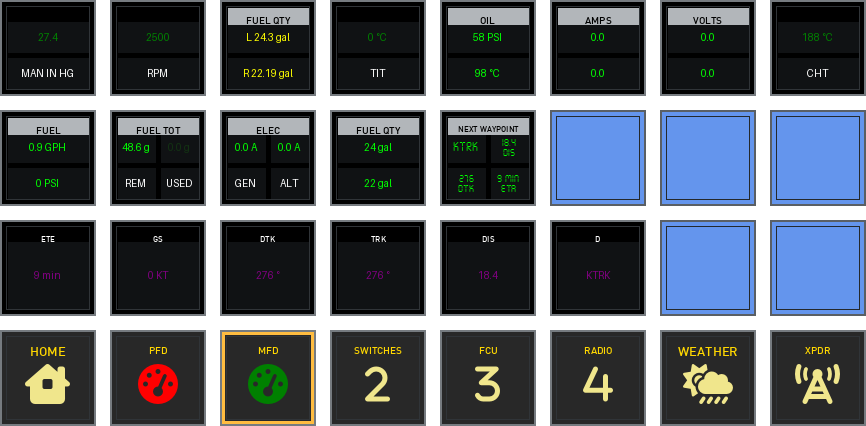

G1000_Manual.pdf [MFD] Engine Indication System (EIS) on page 54. ↩
