Cessna 172 SP¶

Supported Functions¶

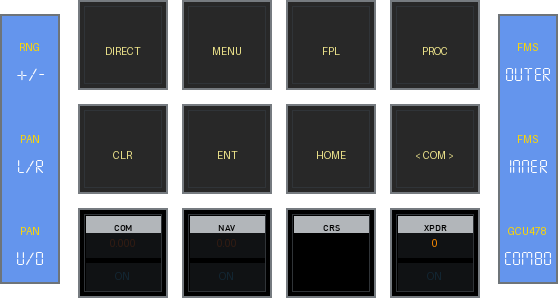

G1000

Additional buttons were added to support the additional G1000 AP functions (FD/VNAV/FLC).# Engine

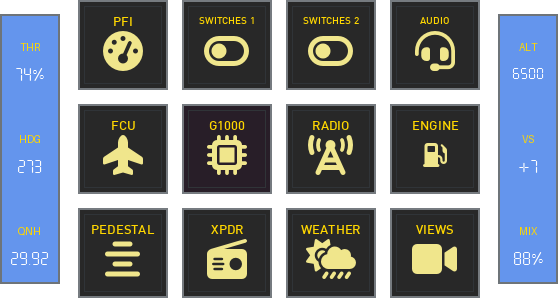

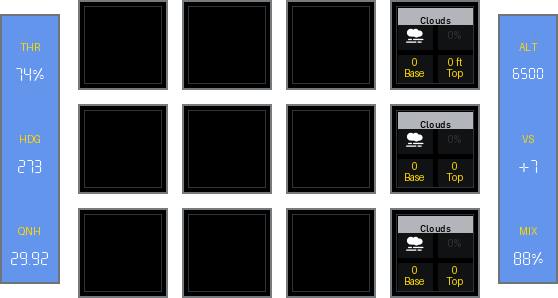

Deck consists of 7 pages which can be accessed via the lower hardware numbered button.

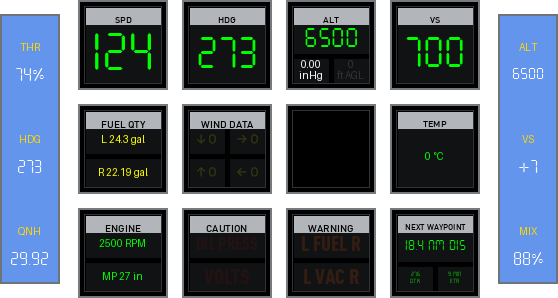

PFI

Airspeed Indicator: Displays speed in knots.
Heading: Displays magnetic bearing.
Altimeter: Displays altitude and barometer setting.
Vertical Speed: Displays vertical speed.
Fuel Quantity: Fuel remaining in left/right tank. Fuel converted from kg to gallons using RPN 0.264172.
EGT and Fuel Flow: Displays exhaust gas temperature and fuel flow.
Oil: Displays oil temperature and pressure.
Vacuum/Pressure and Battery Ammeter: Vacuum pressure and battery current (positive indicates charging, negative depleting).
Propeller Speed: Propeller speed in RPM. Engine RPM the same given that it is direct drive.
Caution Annunciators: Oil pressure and voltage caution annunciators.
Warning Annunciators: Fuel pressure and vacuum pressure warning annunciators.
NAVGPS mode: Display for navigation mode and also a push button to toggle between NAV (VLOC) and GPS.
Next Waypoint: If there is a flight plan being followed, this button will display data related to the next waypoint e.g. nautical miles left, desired track (bearing), and ETA in minutes.

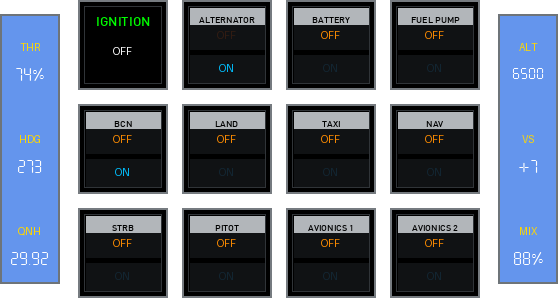

Switches (Battery, alternator, lights etc)

Warning

PythonPlugin required for long press button (/Resources/Plugins/PythonPlugins/PI_cockpitdecks_helper.py)

Starter motor: Long press push button functionality is facilitated by a Python plugin.
Alternator: Controls power supply to systems and battery charging when the engine is running.
Battery: Controls power supply when the engine is not running.
Fuel Pump: Controls electric fuel pump for priming engine and as a backup for mechanical pump failure.
Beacon: On/off control for rotating beacon light.
Landing Lights: On/off control for landing light.
Taxi Lights: On/off control for taxi light.
Navigation Lights: On/off control for wing and tail lights.
Strobe Lights: On/off control for wing strobe lights.
Pitot Heat: On/off control for pitot tube heater.
Avionics Bus 1: Powers BUS1, including Comm Panel, G530 GPS, Transponder, Autopilot, and BUS2.
Avionics Bus 2: Powers BUS2, including G430 GPS, VOR2, and ADF.

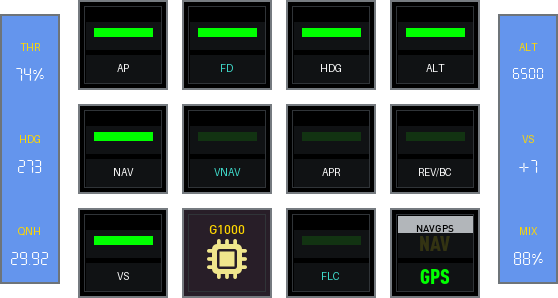

FCU (Provides autopilot functions)

Note

Some functions are not available on S-TEC 55 Autopilot (Cessna 172 G530 model).

AP: Engages or disengages the autopilot system.
FD: Not available on S-TEC 55 Autopilot model. Provides visual cues for manual flight control based on autopilot logic without actually controlling the aircraft.
HDG: Heading mode. Autopilot turns the aircraft to heading selected via Heading Bug knob.
ALT: Altitude mode holds the current altitude.
NAV: Directs aircraft heading according to flight plan programmed into GPS (GPS mode) or to/from a radio navigation aid (VLOC mode).
VNAV: Not available on S-TEC 55 Autopilot model. Manages aircraft's vertical path according to a predefined route or waypoint altitudes.
APR: Activates an Instrument Landing System (ILS) approach mode for precision guidance during landing approaches.
REV/BC: Engages mode for flying an ILS localiser back-course approach, used for approaches where the aircraft is flying away from the beacon.
VS: Vertical speed mode to maintain an ascent or descent rate.
FLC: Not available on S-TEC 55 Autopilot model. Maintains a set airspeed while climbing or descending to a selected altitude.

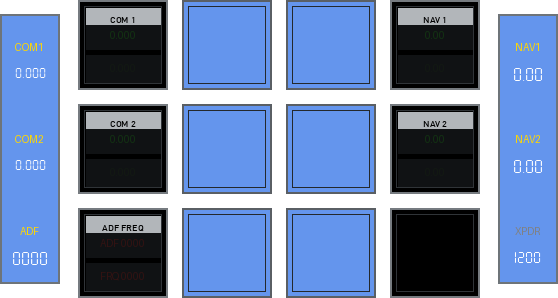

Radio (ADF, COM/NAV functions)

ADF FREQ: Displays ADF frequency and ADF standby frequency. Pressing button will swap frequencies.
COM 1: Displays COM1 frequency and COM1 standby frequency. Pressing button will swap frequencies.
VLOC 1: Displays NAV1 frequency and NAV1 standby frequency. Pressing button will swap frequencies.

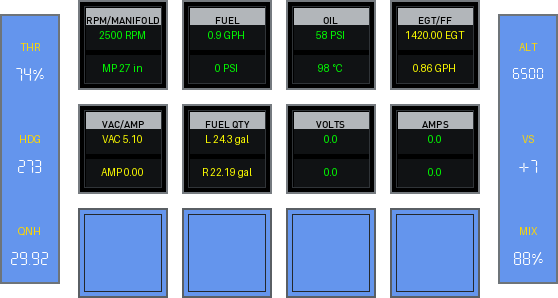

Engine (Displays engine data)

ENG RPM: Displays engine/prop RPM.
MANIFOLD PRESSURE: Displays manifold pressure.
OIL TEMP: Displays oil temperature.
OIL PRESSURE: Displays oil pressure.
FUEL FLOW: Display fuel flow in GPH.
Formula: fuel_flow_kg_sec 3600 * 0.8 / 3.78541 / 2 roundn
CHT: Displays cylinder head temp in celsius.
BATTERY:
Displays battery charge in watts per hour.
Displays battery amps (negative value means battery is discharging)
THROTTLE: Displays throttle as a percentage.
FUEL EST: Provides an estimate on fuel remaining in hours, based on current fuel flow.
Formula: fuel_flow_kg_sec[0]} 3 roundn 0.000001 + / 3600 / 1 roundn
MIXTURE: Displays fuel mixture as a percentage.

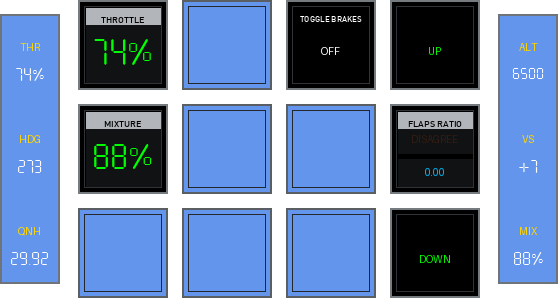

Pedestal (Flaps, gear)

THROTTLE: Displays throttle as a percentage.
TOGGLE BRAKES: Displays the state of the parking brake. Push will toggle parking brake on/off.
MIXTURE: Displays fuel mixture as a percentage.
FLAPS UP: Extends flaps one notch.
FLAPS RATIO: Displays flaps state as a number between 0 and 1 (0 fully retracted, 1 fully extended).
FLAPS DOWN: Retracts flaps one notch.

Transponder (Change transponder mode and id)

SQUAWK CODE BUTTONS: The top four buttons display the squawk code and serve as push buttons to increment the transponder digits.
Transponder Mode Buttons:
ON
OFF
STBY
ALT
TEST
IDENT: Transmits radio beacon for a short period of time.
RADIO BEACON: Displays an R if the transponder is broadcasting. This will display intermittently or constantly for a short period of time if IDENT is pushed.
MODE: Displays the current mode of the transponder.
